Detail Information

Warranty:	1 Years	Capacity (Load):	1-10T
Customized Support:	OEM, ODM	Lift Drive / Actuation:	Hand
Product Name:	Hydraulic Hand Pallet Truck	Color:	Yellow
Load Capacity:	2500kg-3000kg Hand Pallet Truck	Wheels:	Nylon
Max. Lifting Height:	200mm	Fork Length:	1150/1220mm
Handle:	3-position Handle	MOQ:	1set
Material:	Steel Hand Pallet Truck

Product Description

Specification

*SPECIFICATIONS OF HAND PALLET TRUCK*
Model		HF20	HF25	HF30	HF40
Capacity	kg	2000	2500	3000	1000
Fork dimensions	mm	160x230x1200	160X365X1200	160x365x1200	160x230x900
Wheel Type		Nylon wheel/ Polyurethane wheel /Ordinary rubber wheel,etc
Load wheel Size	mm	70x80	70X80	70x80	80x95
Steer wheel Size	mm	180x50	180X50	180x50	180x50
Min.fox height	mm	80	80	80	80
Max.fox height	mm	200	200	200	200
Overall length	mm	1100	1200	1200	1220
Overall width	mm	550	685	685	550
Overall height	mm	1220	1220	1220	1220
Packing measurement	mm	2300x550x650	2400X685X650	2400x685x650	2300x550x650
Net weight	kg	58/ 65.5	63.5 / 71	63.5 /71	48 / 57.5

Products Description

AC pump is an integral pump, which is import from German, more reliable and firmer. Integrated spool has long service life, less fault and labor saving.

DF PUMP is the traditional hydraulic pump and has been sold in the market for years. The DF pump is solid. And it could controlled the falling speed.

Handle of Hand Pallet Truck

The handle has 3 gear.

Shift the gear position to controlled the pallet truck .
The top gear is drop.
The middle gear is set.
The bottom gear is rise.

PU Wheel

PU Wheel is in suitable resistance. It's durable due to its iron core. Its red and PU wheel is mild for the group. Use for ceramic tiles, floor, epoxy resin etc.

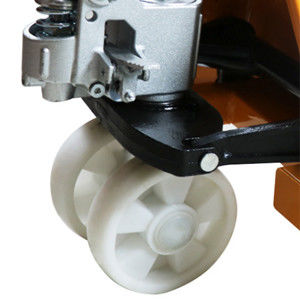

Nylon wheel

Nylon wheel is low resistance. Its white, and the price is cheap. Due to its hard surface,it's easy to creat noise and dust.

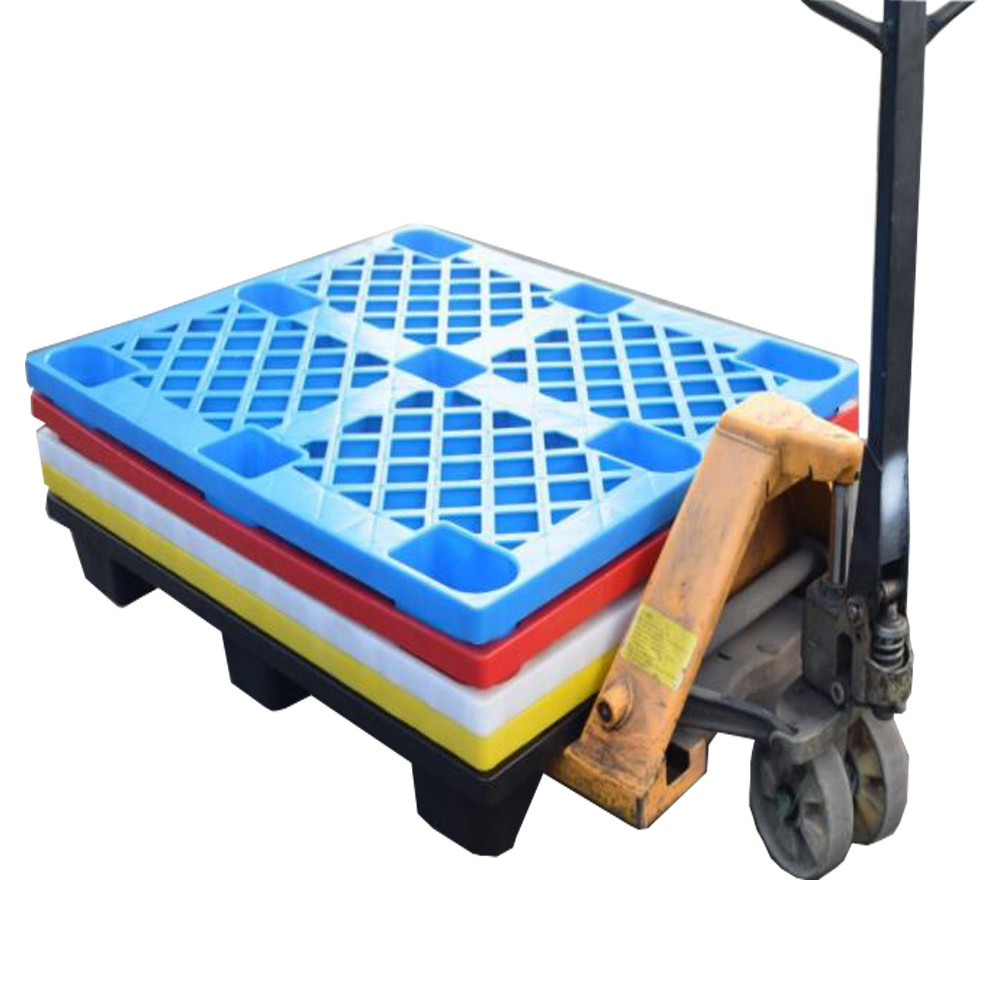

Do you need a plastic pallet?

Company Profile

WHO WE ARE
Founded in 2006, Qingdao Huading, comprehensive supplier of logistic and storage products in China, including plastic pallets,plastic foldable pallet boxes, plastic moving boxes, plastic garbage dustbins and series of products.

WHAT WE DO
We not only offer top quality plastic logistics products,but also professional logistics and storage solutions.

ADVANTAGES
1. Independent R&D Center; always able to offer customized products
2. Factory manufacturing base covers area 90,500 m2
3. Rich production lines meet different and special request from users.
4. Special QC team and independent testing labs, quality is guaranteed
5. Quick response on customers' request, one hour quick response in work day
6. On time shipping and order tracking
7. 7*24 hours after sale service

FAQ

Q: How can I choose the suitable plastic pallet?
A: It depends on 3 main factors:
a.The design of the pallet, we have 3-runners bottom type, full perimeter bottom type, double-faced bottom type and 9-feet bottom
type.
b. The material of the pallet, normally it is PP or HDPE.
c. The method of production, generally it is injection molding and blowing molding.
Just tell us your needs and requirements, we will select the right pallet for you.

Q: Can I have my customized type and logo?
A: Yes, of course. We are good at customized products, any needs of customization or OEM service, please contact us for more
information. For appearance change, like Logo, outlook adding, print it would be easy to achieve.

Q: Can I have a sample for testing?
A: Yes, of course. We are pleasured to offer sample for your check and testing, and also believe our products will satisfy you.

Q: Do you accept Paypal, Weston Union,and trade assurance except of TT and L/C?
A: Don’t worry, all our work is to help you get satisfied products and keep your money safe before receipt. So we accept all
payment method you choose.
LET US PROTECT YOUR ORDERS, FROM PAYMENT TO DELIVERY.

Q.How long can I get mass cargoes after payment?
A: Generally 10-15 days.
