Detail Information

Scale:	Heavy Duty	Capacity:	Requirements
Material:	HDPE(lid & Pallet)+PP(honeycomb Sheets)	External DIM(mm):	16501150500/ 760/ 860/ 1000/ 1050/... Any Customized Height
Internal DIM(mm):	15401080300/ 560/ 660/ 800/ 850... External -200	Sleeve Height(mm):	Total Height-120
Folded Height(mm):	16001150205	Pallet & Lid Weight (kg):	31kgs(pall Et:18.5kg + Lid:12.5kg)
Locks:	Optional, 4 Locks At Lid, 4pcs At Bottom Pallet	Folding Times:	≥30,000 Times
Temperature:	-20°c - 55°c	Service Life:	More Than 3 Years

Product Description

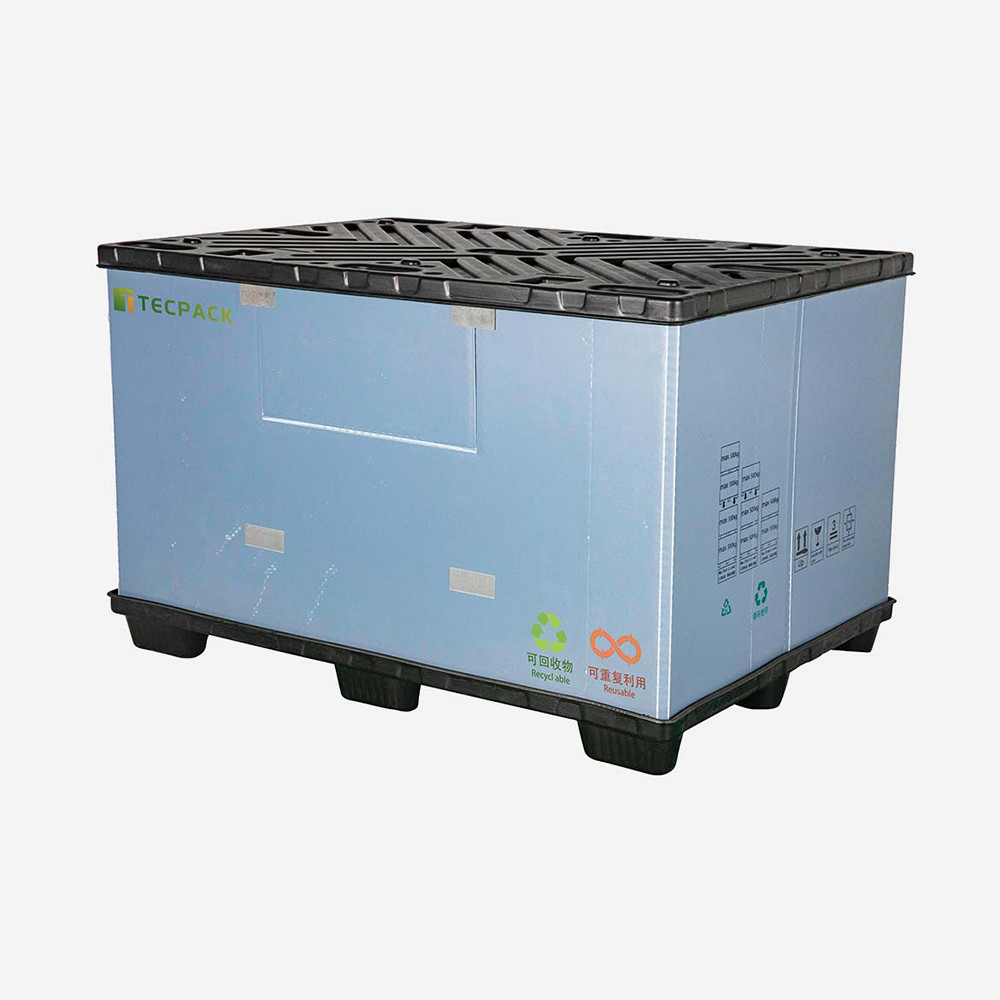

Plastic Sleeve Pack Boxes

TECPACK plastic sleeve Pack Containers, also known as the bulk pallet pack, are a form of reusable bulk container that is widely deployed in automotive and other industries. Compared with injections plastic pallet bulk containers, they provide a more flexible, lower-cost approach to reusable packaging, while providing a very attractive alternative to expendable packaging in many applications.
Maybe as sleeve packs boxes appear late, so different people name them differently, such as plastic pallet boxes, bulk containers, sleeve pack containers, smart boxes, collapsible bulk containers, Mega Pack, and so on.

What is a Sleeve Pack?

Sleeve Pack is a kind of cost-effective bulk container, lightweight, durable, returnable, and flexible on sizes. Plastic sleeve box combined by a pallet base, a top lid, and a fold-able or two-piece sleeve. Sleeves are usually made by PP or corrugated cardboard and they can be in various thicknesses, depending upon the demands of the application.

Inner package material

TECPACK has rich experiences to help you design and choose suitable materials to pack cargo very well. Non-woven fabric, polymeric foam, corrugated sheet, customized thermoformed pallets, even steel structure can be adopted as inner package material, depending on the application.

Other accessories

Sleeve pack bulk containers are typically equipped with some accessories, such as drop doors, locks, and velcro, customized internal dunnage, graphics, colors, as well as sleeve material and thickness choices.

What is the advantage of Sleeve Pack Containers?
* Same with rigid plastic fold-able pallet boxes, they are also reusable bulk containers but with cheaper package costs.
* Bulk sleeve pack containers perform well in the load capacity of range 300kg-1000kg(600lbs-2200lbs)
* Compared with wood packs, they are hygienic and washable.
* Sleeves are removable, lightweight, durable, and collapses when emptied to provide efficient storage

* High return ratios of 4:1 or 7:1
* Easy of customization and operator convenience
* Sleeve pack pallets are usually blowing or blister pallets, versus injection molded pallets, they can be more quickly and lower cost much prototyped to various pallet sizes as required.
* Easy and speed of assembly and disassembly

Item No.	HD-CM160115
Material	HDPE(lid & pallet)+PP(honeycomb sheets)
External DIM(mm)	16501150300/ 760/ 860/ 1000/ 1050/... Any customized height
Internal DIM(mm)	15401080300/ 560/ 660/ 800/ 850... External -200
Sleeve height(mm)	Total height-120
Folded height(mm)	16001150205
Pallet & lid weight (kg)	31kgs(pallet:18.5kg + lid:12.5kg)
Locks	Optional, 4 locks at lid, 4pcs at bottom pallet
Honeycomb sleeve	11.3mm 3.0kg/m2	11.3mm 4.0kg/m2
Static load(kg)	1+3 (1200kg), height<900mm 1+2 (1200kg), height>900mm	1+3 (2000kg), height<900mm 1+2 (2000kg), height>900mm
Dynamic load(kg)	1+2 (900kg), height<900mm 1+1 (900kg), height>900mm	1+2 (1500kg), height<900mm 1+1 (1500kg), height>900mm
Single box load(kg)	300Kg	500Kg
Folding times	≥30,000 times
Temperature	-20°c - 55°c
Service life	More than 3 years
Folding type	M-folding/Li-folding
Steel Reinforcement	No
Packing quantity	90 sets/20G	240 sets/40H

Company Profile

Packing & Delivery

FAQ

How can I know which pallet suits my use?

We suggest to check below details and contact our sales team to get prompt and processional solution.
1. Pallet application
for racks-generally choose 3 runners pallets, full perimeter bottom type pallets and double faced pallets;

for transportation-generally choose 3 runners pallets, full perimeter bottom type pallets and 9 feet pallets;

for one-way delivery-generally choose 9 feet pallets.
2.Pallet size
3.Pallet load capacity
dynamic load, static load and racking load.

Can you make any color pallet?

Yes, we can customized for any color.

How long for delivery time?

Generally 15-20days against deposit.

Any other additional service you can provide?

* Customized Logo printing;
* Customized color;
* Free det+dem at destination port;
* Three years quality warranty

Place of Origin:	Shandong, China
Brand Name:	HUADING
Model Number:	HD-CM207115

Minimum Order Quantity:	10 pieces
Price:	$89.00/pieces 10-499 pieces
